2.13inch Digital Price Tag E-ink Electronic Shelf Label with Black and White
- Model
- SETR0213N
Item specifics
- Display Size
- 2.13 inch
- Outline
- 66mm(V) ×37.5mm(H)×13.7mm(D)
- Weight
- 36g
- Color Display
- Black and White
- Display Resolution
- 212(H)×104(V)
- Communication Band
- 433MHz/ 868 MHz /915 MHz
- Response Time
- 9s(Configurable)
- Battery Life
- Not less than 5 years, Replaceable
- Battery
- CR2450*1
Review
Description
Feature
1. Low energy
2. Black white and red
3. Cloud or local Server based options
4. 433MHz/868 MHz /915MHz communication
5. 212x104 pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
|
Model
|
SETR0213N
|
|
Screen Size
|
2.13 inch
|
Dimension | 37.5mm(V)*66mm(H)*13.7mm(D) |
View Area | 66.9*29.0mm |
Display Resolution | 212*104 |
Display Type | Bi-stable EPD(E-ink Display) |
Display Color | Black, White, Red |
Appearance | Standard unit available with white frame |
Unit Identifier Barcode | Recognized by Scanner or Labeling on back |
Operating Temperature | 0~50℃ |
Storage Temperature | -10~60℃ |
Battery Life | Not less than 5 years, Replaceable |
Replaceable Batteries | CR2450*1 |
Weight | 36g |
Communications | 433MHz/ 868MHz/ 915MHz |
|
Operating Voltage
|
2.4V~3.6V
|
Wireless Communication Technology
ØDisplay update rate:
30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable,
support for dot matrix (picture).
ØWorking Temperature:
0 ℃ ~40 ℃ or -25 ℃~15 ℃。
ØCommunication
interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support
format text, Excel files, data intermediate table, custom development and other
methods.
System Architecture
Solution for Market
Real-time display of the latest price and price type of the supermarket background system and other related information

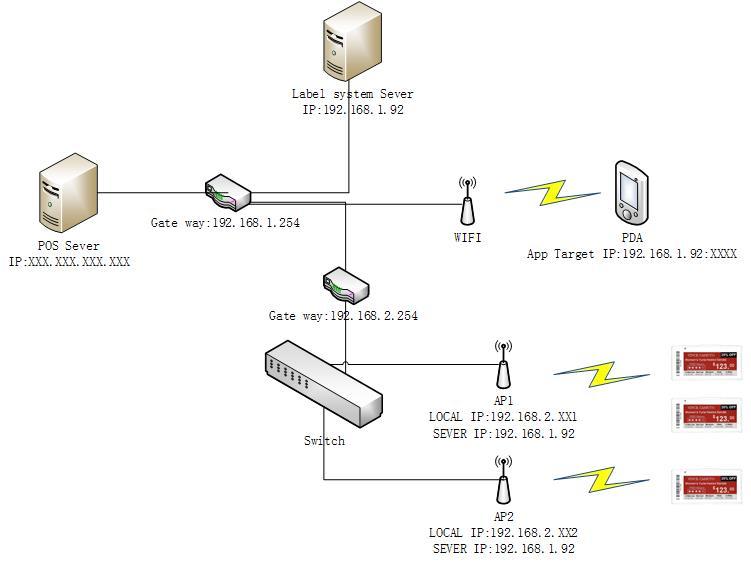

Network Architecture (Single Store Model)

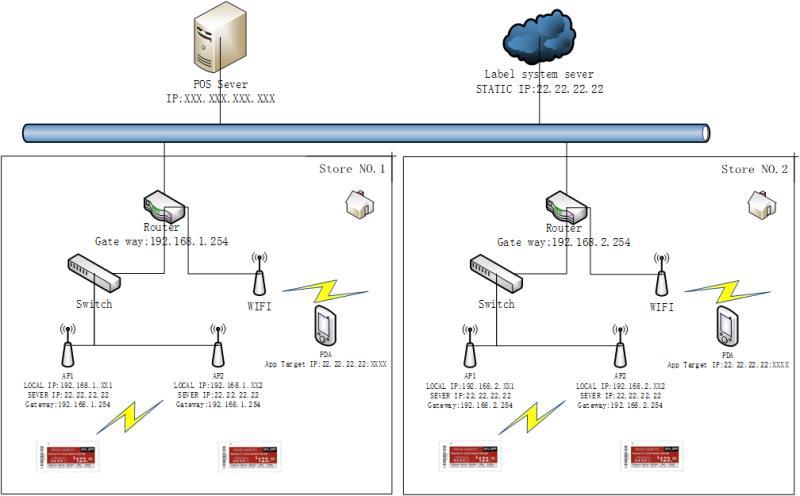

Network Architecture (Multi-Store Model)
Why Choose Sertag's Electornic Shelf Labels ?
1.Improve the operation efficiency of
commodities
2.In-depth evaluation of the value of each commodity and each location
3.Intelligent display of commodity information
4.Enhance the interaction between products and customers
Technical | Prdouct Function | Sertag | HS-COMPANY | HL-COMPANY | B-COMPANY |
Power Dissipation |
5--8 years
|
5years
|
5years
|
5years
|
|
Communication Frequency | multichannel Industry SubG | 2.4G | single channel Industry Subg | 2.4G | |
Data
security level | encryption
technique | no | no | no | |
Cost | 15% reduction | High | High | High | |
Communication
Distance | 24M | 12M | 12M | 8M | |
Speed
of communication | 2000/hour | 700/hour | 700/hour | 700/hour | |
Battery
Replacement | Simple, low maintenance cost | Complex, high maintenance cost | Complex,high maintenance cost | Complex,high maintenance cost | |
Application | Retail ,logistics, medical treatment, storage | retail | retail | retail |
