433MHz 2.13inch E-Paper Electronic Shelf Label E-ink Price Tag for Retail
- Model
- SETR0213N
Item specifics
- Display Size
- 2.13 inch
- Outline
- 66mm(V) ×37.5mm(H)×13.7mm(D)
- Weight
- 36g
- Color Display
- Black and White
- Display Resolution
- 212(H)×104(V)
- Communication Band
- 433MHz/868 MHz /915 MHz
- Response Time
- 9S(Configurable)
- Battery Life
- Not less than 5 years，Replaceable
- Battery
- CR2450*2
Review
Description

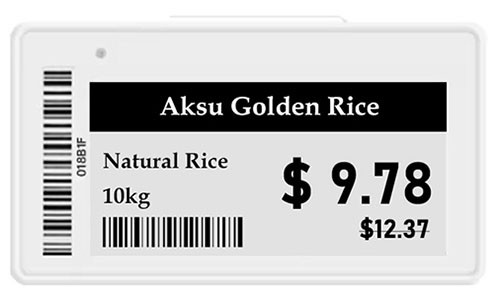

2.13inch E-Paper Electronic Shelf Label E-ink Price Tag for Retail
✔ Real-Time Updates
Communication band is 433 Mhz. Instantly change prices and display information across all labels remotely.
✔ E-Ink Display
High-contrast, easy-to-read screens with minimal power consumption.
✔ Server Options
Cloud or local Server based options
✔ Long Battery Life
Lasts up to 5 years without the need for frequent replacements.
✔ Wide range of applications
Perfect for the retails, warehouses and logistics management
|
Model
|
SETR0213N
|
Screen Size
|
2.13 inch
|
|
Dimension(mm)
|
37.5*66*13.7
|
View Area(mm)
|
66.9*29.0
|
|
Display Resolution
|
212*104
|
Display Type
|
Bi-stable EPD(E-ink Display)
|
Replaceable Batteries | CR2450*2 | Operating Voltage | 2.4V~3.6V |
Opereating Temperature | 0~50℃ | Storage Temperature | -10~60℃ |
Display Color | Black, white | Communications | 433MHz/868 MHz /915 MHz |
|
Appearance
|
Standard unit available with white frame
|
Unit Identifier Barcode
|
Recognized by Scanner or Labeling on back
|
Battery Life | Not less than 5 years，Replaceable |
System Architecture
Why Choose Sertag's Electronic Shelf Labels?
1. Improve the operation efficiency of commodities
2. In-depth evaluation of the value of each commodity and each location
3. Intelligent display of commodity information
4. Enhance the interaction between products and customers
2.13inch E-Paper Electronic Shelf Label Download
Application
