1.54 inch Digital Price Tag E-ink Electronic Shelf Label
- Model
- SETR0154N
Item specifics
- Display Size
- 1.54 inch
- Outline
- 44mm(H)x38mm(V)x10.5mm(D)
- Weight
- 23g
- Color Display
- Black, White
- Display Resolution
- 152(H)*152(V)
- Communication Band
- 433MHz/ 868 MHz/ 915 MHz
- Response Time
- 9s(Configurable)
- Battery Life
- Not less than 5 years, Replaceable
- Battery
- CR2450*1
Review
Description
1.54 inch Digital Price Tag E-ink Electronic Shelf Label
Feature
1. Low energy
2. Black and white
3. Cloud or local Server based options
4. 433MHz/868 MHz /915 MHzommunication
5. 152x152 pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Model | SETR0154N |
Screen Size | 1.54inch |

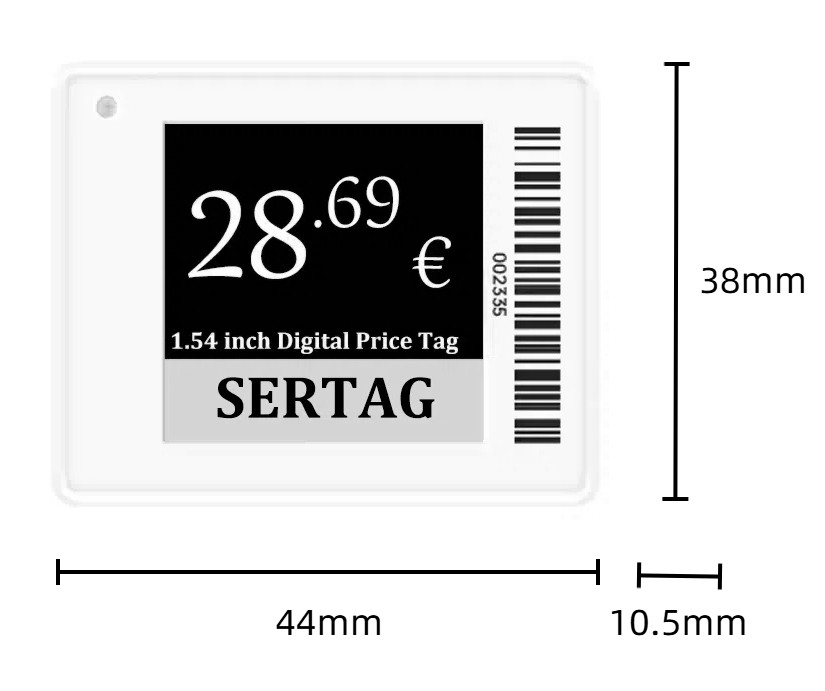

Dimension | 44mm(H)x38mm(V)x10.5mm(D) |
Display Resolution | 152*152 |
Display Type | Bi-stable EPD(E-ink Display) |
Display Color | Black, white |
Appearance | Standard unit available with white frame |
Unit Identifier Barcode | Recognized by Scanner or Labeling on back |
Operating Temperature
|
0~50℃
|
Storage Temperature | -10~60℃ |
Battery Life | Not less than 5 years,Replaceable |
Replaceable Batteries
|
CR2450*1
|
Weight
|
23g
|
Communications | 433MHz/ 868 MHz/ 915 MHz |
Operating Voltage
|
2.4V~3.6V
|
Wireless Communication Technology
ØDisplay update rate:
30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable,
support for dot matrix (picture).
ØWorking Temperature:
0 ℃ ~40 ℃ or -25 ℃~15 ℃。
ØCommunication
interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support
format text, Excel files, data intermediate table, custom development and other
methods.
System Architecture
Solution for Market
Real-time display of the latest price and price type of the supermarket background system and other related information

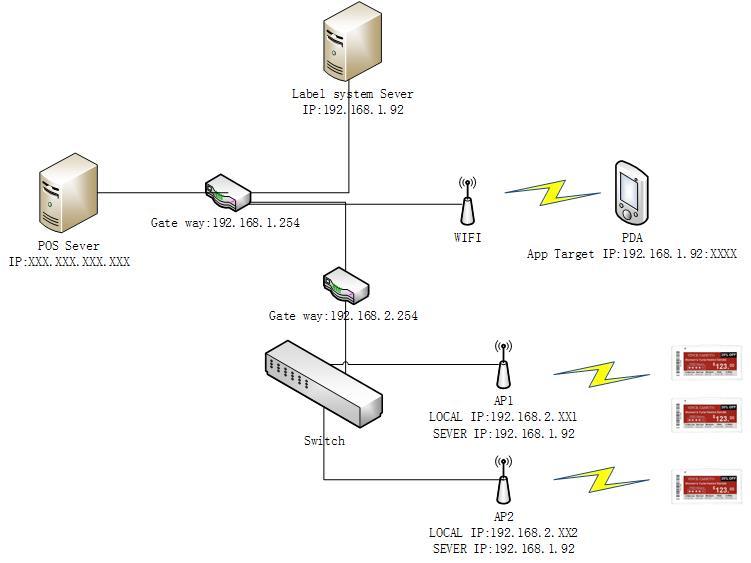

Network Architecture (Single Store Model)

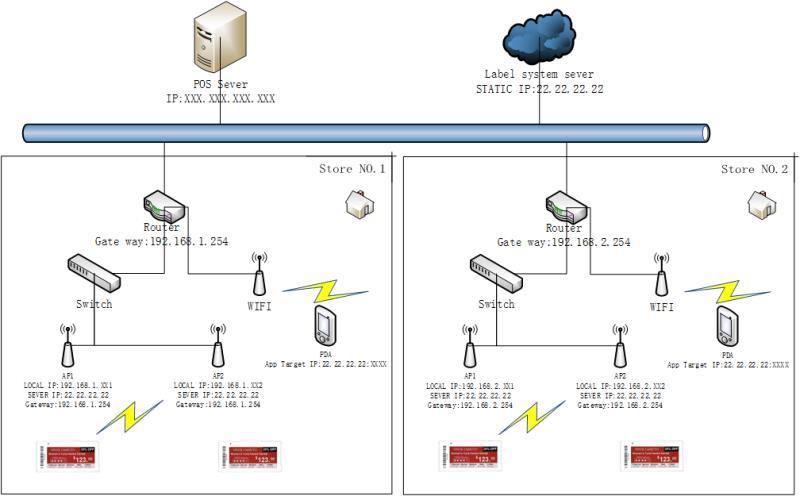

Network Architecture (Multi-Store Model)
Why Choose Sertag's Electronic Shelf Labels?
1. Improve the operation efficiency of commodities
2. In-depth evaluation of the value of each commodity and each location
3. Intelligent display of commodity information
4. Enhance the interaction between products and customers
Technical | Prdouct Function | Sertag | HS-COMPANY | HL-COMPANY | B-COMPANY |
Power Dissipation |
5--8 years
|
5years
|
5years
|
5years
|
|
Communication Frequency | Multichannel Industry SubG | 2.4G | Single channel Industry Subg | 2.4G | |
Data
security level | Encryption
technique | No | No | No | |
Cost | 15% reduction | High | High | High | |
Communication
Distance | 24M | 12M | 12M | 8M | |
Speed
of communication | 2000/hour | 700/hour | 700/hour | 700/hour | |
Battery
Replacement | Simple, low maintenance cost | Complex, high maintenance cost | Complex,high maintenance cost | Complex,high maintenance cost | |
Application | Retail ,logistics, medical treatment, storage | Retail | Retail | Retail |
