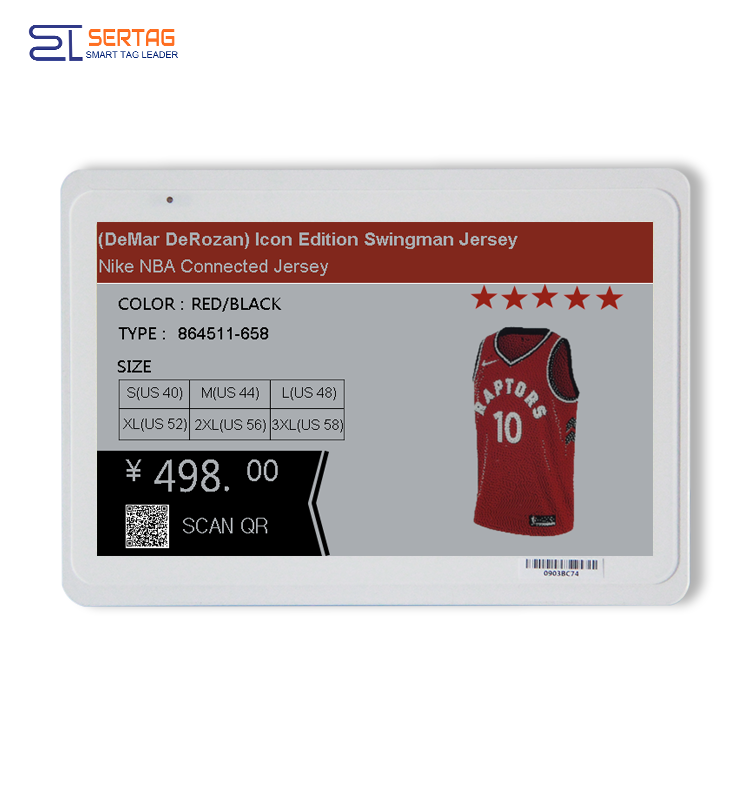

7.5 inch tricolor 640*384 resolution electronic shelf edge labels for retail
7.5 inch  tricolor 640*384 resolution electronic shelf edge labels for retail
7.5 inch  tricolor 640*384 resolution electronic shelf edge labels for retail
7.5 inch  tricolor 640*384 resolution electronic shelf edge labels for retail
7.5 inch  tricolor 640*384 resolution electronic shelf edge labels for retail
7.5 inch  tricolor 640*384 resolution electronic shelf edge labels for retail
Model
SETR0750R

Item specifics

Part NO.
SETR0750R
Outline
216mm(V) ×131mm(H)×9mm(D)
Weight
239g
Color Display
Black , White and red
Display Size
7.5 inch
Display Resolution
640(H)×384(V)
Communication Band
433MHz/868 MHz /915 MHz
Response Time
9S(Configurable)
Battery Life
Not less than 5 years,Replaceable
Battery
CR2450*6

Review

Description

7.5 inch  tricolor 640*384 resolution electronic shelf edge labels for retail
electronic shelf labels
Product Description
Feature
1. Low energy
2. Black ,  white  and red
3. Cloud or local Server based options
4. 433MHz/868 MHz /915 MHzommunication
5. 640*384pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Parameters

Model

SETR0750R

Screen Size

7.5inch

Dimension

216mm(V) ×131mm(H)×9mm(D)

Display Resolution

640*384

Display Type

Bi-stable EPD(E-ink Display)

Display Color

 Black ,white and red

Appearance

Standard unit available with white frame

Unit Identifier Barcode

Recognized by Scanner or Labeling on back

Opereating Temperature

0~50-

Storage Temperature

-10~60

Battery Life

Not less than 5 yearsReplaceable

Replaceable Batteries

CR2450*6

Weight

239g

Communications

433MHz/868 MHz /915 MHz

Operating Voltage

2.4V~3.6V

Wireless communication technology

ØDisplay update rate: 30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable, support for dot matrix (picture).
ØWorking Temperature: 0 ℃ ~40 ℃ or -25~15 ℃。
ØCommunication interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support format text, Excel files, data intermediate table, custom development and other methods.


System architecture

Solution for Market



Real-time display of the latest price and price type of the supermarket background system and other related information


Network architecture (single store model)

Network architecture (multi-store model)

 Why choose sertag’s electornic shelf labels ?

1.Improve the operation efficiency of commodities

2.In-depth evaluation of the value of each commodity and each location

3.Intelligent display of commodity information

4.Enhance the interaction between products and customers


Advantage





Technical
Prdouct Function
Sertag
HS-COMPANY
HL-COMPANY
B-COMPANY
Power  Dissipation
5--8 years
5years
5years
5years
 Communication Frequency
multichannel Industry  SubG

2.4G
single channel Industry Subg

2.4G
Data security level
encryption technique
no
no
no
Cost

15% reduction

High
High
High
Communication Distance
24M
12M
12M
8M
Speed of communication
2000/hour
700/hour
700/hour
700/hour
Battery Replacement

Simple, low maintenance cost

Complex, high maintenance cost
Complex,high maintenance cost
Complex,high maintenance cost
Application

Retail ,logistics, medical treatment, storage

                                    retail
                                        retail
                                         retail
Application
