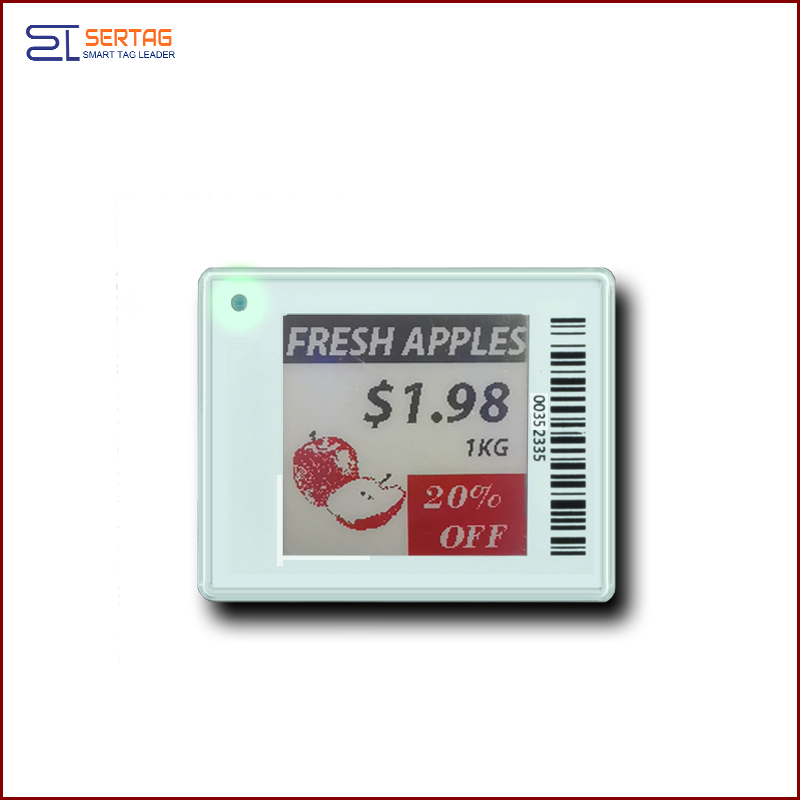

Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for retail
Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for  retail
Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for  retail
Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for  retail
Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for  retail
Model
SETR0154R

Item specifics

Part NO.
SETR0154R
Outline
44mm(H)x38mm(V)x10.5mm(D)
Weight
23g
Color Display
Black、White and Yellow
Display Size
1.54 inch
Display Resolution
152(H)*152(V)
Communication Band
433MHz/868 MHz /915 MHz
Response Time
9S(Configurable)
Battery Life
Not less than 5 years,Replaceable
Battery
CR2450*1

Product review

Description

Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for  retail
Product Description
Feature
1. Low energy
2. Black white and red
3. Cloud or local Server based options
4. 433MHz/868 MHz /915 MHzommunication
5. 152x152 pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Parameters

Model

SETR0154R

Screen Size

1.54inch

Dimension

44mm(H)x38mm(V)x10.5mm(D)

Display Resolution

152*152

Display Type

Bi-stable EPD(E-ink Display)

Display Color

 Black white and red

Appearance

Standard unit available with white frame

Unit Identifier Barcode

Recognized by Scanner or Labeling on back

Opereating Temperature

0~50-

Storage Temperature

-10~60

Battery Life

Not less than 5 yearsReplaceable

Replaceable Batteries

CR2450*1

Weight

23g

Communications

433MHz/868 MHz /915 MHz

Operating Voltage

2.4V~3.6V

Wireless communication technology

ØDisplay update rate: 30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable, support for dot matrix (picture).
ØWorking Temperature: 0 ℃ ~40 ℃ or -25~15 ℃。
ØCommunication interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support format text, Excel files, data intermediate table, custom development and other methods.


System architecture

Solution for Market



Real-time display of the latest price and price type of the supermarket background system and other related information


Network architecture (single store model)

Network architecture (multi-store model)

 Why choose sertag’s electornic shelf labels ?

1.Improve the operation efficiency of commodities

2.In-depth evaluation of the value of each commodity and each location

3.Intelligent display of commodity information

4.Enhance the interaction between products and customers


Advantage





Technical
Prdouct Function
Sertag
HS-COMPANY
HL-COMPANY
B-COMPANY
Power  Dissipation
5--8 years
5years
5years
5years
 Communication Frequency
multichannel Industry  SubG

2.4G
single channel Industry Subg

2.4G
Data security level
encryption technique
no
no
no
Cost

15% reduction

High
High
High
Communication Distance
24M
12M
12M
8M
Speed of communication
2000/hour
700/hour
700/hour
700/hour
Battery Replacement

Simple, low maintenance cost

Complex, high maintenance cost
Complex,high maintenance cost
Complex,high maintenance cost
Application

Retail ,logistics, medical treatment, storage

                                    retail
                                        retail
                                         retail
Application
