SERTAG

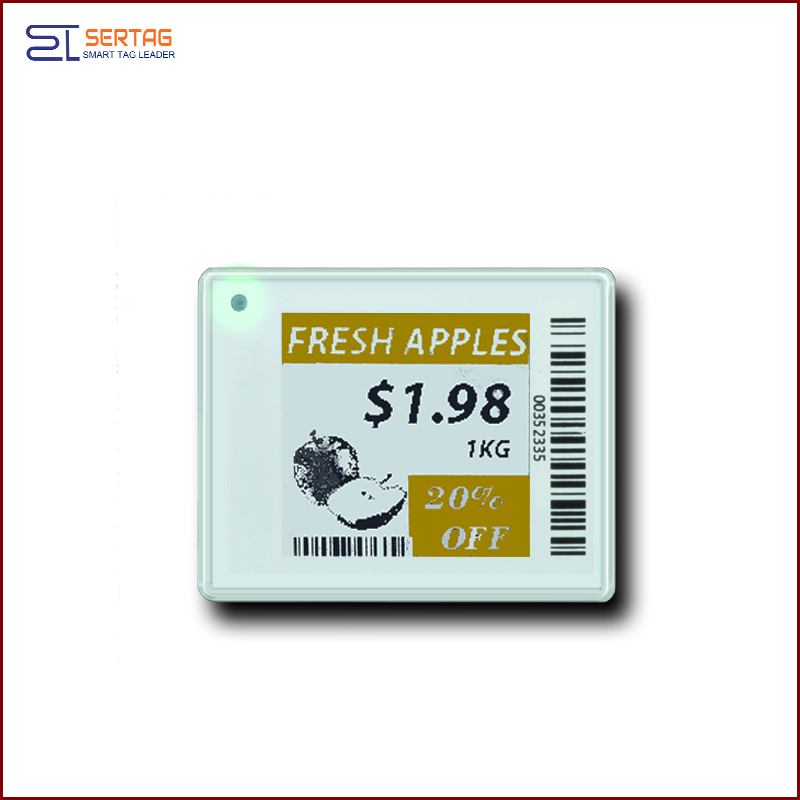

1.54inch low power digital price tag E-ink Electronic Shelf Label smart retail labels

Group Electronic shelf labels for for retail
Min. Order 1 piece
Terms of Payment all
Update Time 2020-09-14
Item specifics
Part NO.SETR0154Y
Outline44mm(H)x38mm(V)x10.5mm(D)
Weight23g
Color DisplayBlack、White and Yellow
Display Size1.54 inch
Display Resolution152(H)*152(V)
Communication Band433MHz/868 MHz /915 MHz
Response Time9S(Configurable)
Battery LifeNot less than 5 years,Replaceable
BatteryCR2450*1
1.54inch low power digital price tag E-ink Electronic Shelf Label smart retail labels
Product Description
Feature
1. Low energy
2. Black white and Yellow
3. Cloud or local Server based options
4.
433MHz/868 MHz /915 MHz
ommunication
5. 152x152 pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Parameters

Model

SETR0154Y

Screen Size

1.54inch

Dimension

38mm(V)*44mm(H)*10.5MM(D)

Display Resolution

152*152

Display Type

Bi-stable EPD(E-ink Display)

Display Color

 Black white and Yellow

Appearance

Standard unit available with white frame

Unit Identifier Barcode

Recognized by Scanner or Labeling on back

Opereating Temperature

0~50
-

Storage Temperature

-10~60

Battery Life

Not less than 5 years
Replaceable

Replaceable Batteries

CR2450*1

Weight

36g

Communications

433MHz/868 MHz /915 MHz

Operating Voltage

2.4V~3.6V

Wireless communication technology

Ø
Display update rate:
30 minutes/30 thousands tags.
Ø
Success
Rate:
100%.
Ø
Communication Band:
RF 433M
Hz
.
Ø
Coverage Distance:
30-50
meters
Ø
Display Templates:
Customizable, support for dot matrix (picture).
Ø
Working Temperature:
0 ℃ ~40 ℃
or
-
25
~15
℃。
Ø
Communication interaction: two-way communication, real-time interaction.
Ø
Life Time:
5
Years, battery can be changed.
Ø
System: Support format text, Excel files, data intermediate table, custom development and other methods.


System architecture

Solution for Market




Real-time display of the latest price and price type of the supermarket background system and other related information



Network architecture (single store model)

Network architecture (multi-store model)


Why choose sertag’s electornic shelf labels ?

1.Improve the operation efficiency of commodities

2.In-depth evaluation of the value of each commodity and each location

3.Intelligent display of commodity information

4.Enhance the interaction between products and customers



Advantage





Technical
Prdouct Function
Sertag
HS-COMPANY
HL-COMPANY
B-COMPANY
Power  Dissipation
5--8 years
5years
5years
5years

Communication Frequency
multichannel
Industry  SubG

2.4G
single channel Industry Subg

2.4G
Data security level
encryption technique
no
no
no
Cost

15% reduction

High
High
High
Communication Distance
24M
12M
12M
8M
Speed of communication
2000/hour
700/hour
700/hour
700/hour
Battery Replacement

Simple, low maintenance cost

Complex, high maintenance cost
Complex,high maintenance cost
Complex,high maintenance cost
Application

Retail ,logistics, medical treatment, storage

                                    retail
                                        retail
                                         retail
Application
