2.13inch Low Temperature Electronic Price Labeling 2.4G Digital Smart Labels in Cold Environment
- Model
- Electronic Price Labeling SETRV3-0213-39
Item specifics
- Display Size
- 2.13 inch
- Communication Distance
- Within 30m (Open distance: 50m)
- Screen Resolution
- 250x122
- Dimension (mm)
- 71.28x34.78x12.3
- Battery
- CR2450*2
- Screen Color
- Black, White
Review
Description

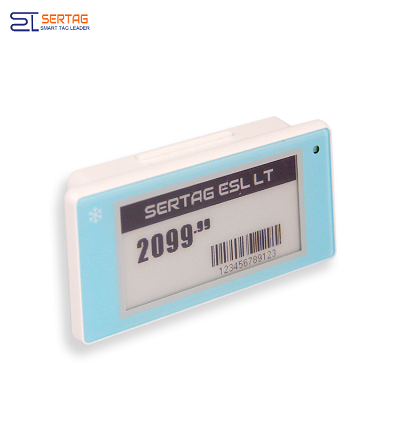

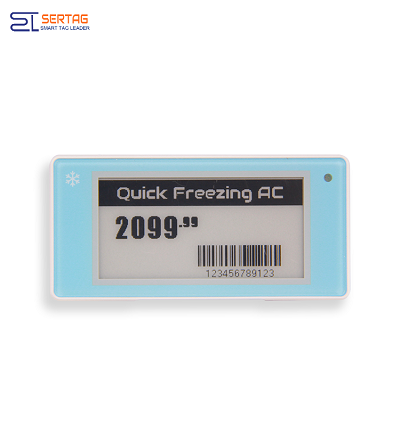

2.13inch Low Temperature 2.4G Electronic Price Label in Cold Environment
Sertag's 2.13 inch low temperature electronic price label use a black, white e-paper display, designed to elevate retail operations with unparalleled clarity and versatility. It has a high resolution with 250x122, the label delivers sharp and clear visuals for text, barcodes, and images.
The 2.13-inch low temperature e-ink electronic shelf label is more than just a product. Its convenient operation and 30m communication distance (up to 50m in open areas) make it a smart solution for modern retail and other fields.
2.13inch Low Temperature Electronic Price Labeling Feature
● Low Temperature E-ink Display
The -25~10℃ e-ink display makes it perfect for cold environment..
● Robust Communication Range
Operating in the 2.4~2.48GHz frequency band, the label offers a communication distance of up to 30 meters indoors and up to 50 meters in open areas.
● Multi-Page Display
Supports up to 8 pages, enabling multiple sets of information to be displayed and easily accessed.
● Durable and Reliable
With an IP68 protection rating, the label is waterproof, dustproof, and built to withstand challenging environments.
Why Choose eRetail3.2 Electronic Shelf Labels?
* SETRV3-0213-39 can't support NFC function, it's different from other eRetail3.2 electronic shelf labels.
eRetail3.2 System ESL | eRetail 3.1 System ESL | Paper Price Label |
| ✔ Reduce Cost | ✔ Reduce Cost | ✘ High Cost |
| ✔ Wireless Update | ✔ Wireless Update | ✘ Can't Update |
✔ Eco-Friendliness | ✔ Eco-Friendliness | ✘ Waste Paper |
✔ Reducing Manual Labor | ✔ Reducing Manual Labor | ✘ Labor Intensive |
⭐ Support multi-page display | Single page display | ✘ |
| ⭐ 4-Colors/ 3-Colors/ Monochrome | 3-Colors/ Monochrome | ✘ |
| ⭐ 30m communication distance (Open distance: 50m) | 12~15 communication radius | ✘ |
2.4G Low Temperature Electronic Price Labeling Solution — System Architecture
Electronic shelf labels (ESL) use wireless communication technology to connect digital price tags with a central management system. When a retailer updates a product price in the system, the information is automatically transmitted to the corresponding electronic label through a base station.
This process allows stores to update thousands of prices simultaneously without manual replacement of paper tags. The E-ink display ensures that the information remains visible even without power consumption, as energy is only required during screen refresh.
First, the ESL label management software on the server processes the information for each item and packages it into data packets containing pricing and product details.
Next, the software transmits these data packets to the base station via a 2.4 GHz wireless signal. After receiving the packets, the base station forwards them to the corresponding electronic shelf labels (ESLs) to update the price displayed on the screen. Each ESL has a unique identification code, allowing it to receive and display the specific information associated with the corresponding product. Data can be sent either to all label devices simultaneously or to selected labels individually.
This communication process enables ESL displays to update automatically whenever product prices are changed in the retailer's ERP or POS system.
In addition, store associates can use a smart mobile terminal to review and manually adjust pricing or product information whenever necessary.
2.4G Electronic Shelf Label Base Station
2.4G Electronic Shelf Label Base Station for eRetail3.2 System
SETAP05 is the corresponding base station of the electronic shelf label of the eRetail3.2 system. Its main function is to act as a communication bridge between the electronic shelf label and the backend management system.
2.4G Low Temperature Electronic Price Labeling Customer Case
The 2.4G ESL system transforms your retail environment by streamlining pricing and information management. Applications include:
Price Updates: Instantly update prices across all labels in your store, ensuring consistency and accuracy without manual intervention.
Product Information: Display detailed product descriptions, promotions, QR codes, and images for customer engagement and information access.
Inventory Management: Effortlessly manage inventory by linking labels to stock levels and automatically updating availability.
