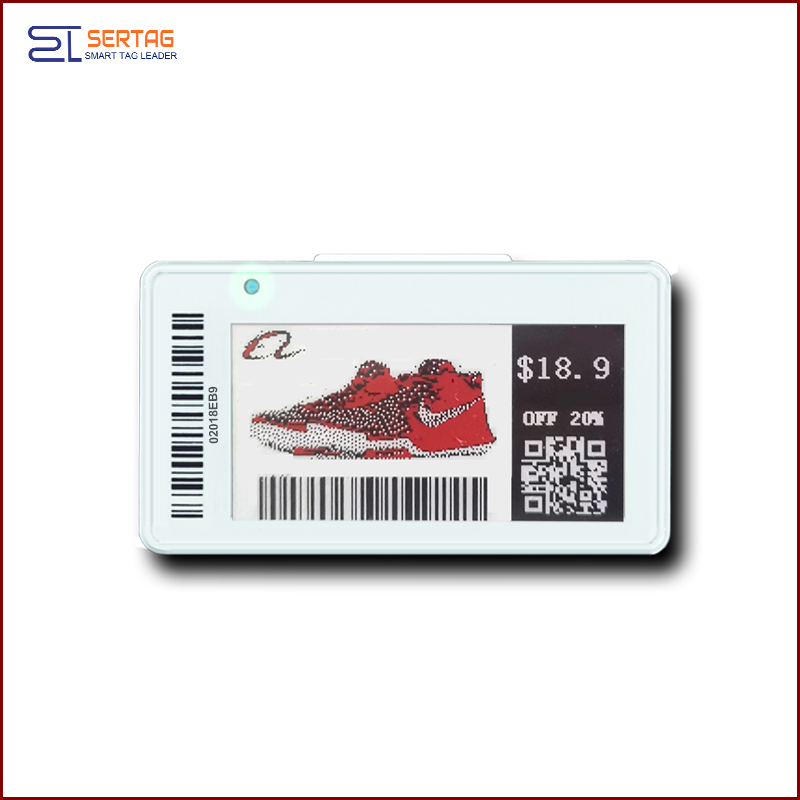

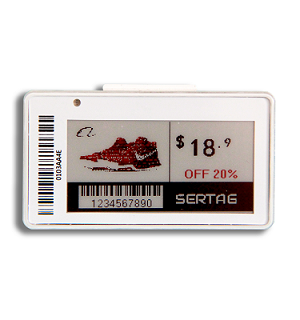

2.13inch Ble Electronic Shelf Labels E-ink Price Tag For Grocery Stores
- Model
- SETR0213R
Item specifics
- Part NO.
- SETR0213R
- Outline
- 66mm(V) ×37.5mm(H)×13.7mm(D)
- Weight
- 36g
- Color Display
- Black、White and Red
- Display Size
- 2.13 inch
- Display Resolution
- 212(H)×104(V)
- Communication Band
- 433MHz/868 MHz /915 MHz
- Response Time
- 9S(Configurable)
- Battery Life
- Not less than 5 years，Replaceable
- Battery
- CR2450*1
Review
Description
2.13inch BLE Electronic Shelf Labels E-ink Price Tag For Grocery Stores
Feature
1. Low energy
2. Black white and red
3. Cloud or local Server based options
4. 433MHz/868 MHz /915MHz communication
5. 212x104 pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
|
Model
|
SETR0213R
|
Screen Size | 2.13 inch |
Dimension | 37.5x66x13.7mm |
View Area | 66.9x29mm |
Display Resolution | 212x104 |
Display Type | Bi-stable EPD (E-ink Display) |
Display Color | Black, white and red |
Appearance | Standard unit available with white frame |
Unit Identifier Barcode | Recognized by scanner or labeling on back |
Operating Temperature | 0~50℃ |
Storage Temperature | -10~60℃ |
|
Battery Life
|
Not less than 5 years, Replaceable
|
Replaceable Batteries | CR2450*1 |
Weight | 36g |
|
Communications
|
433MHz/868MHz/915MHz
|
|
Operating Voltage
|
2.4V~3.6V
|
Wireless Communication Technology
ØDisplay update rate:
30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable,
support for dot matrix (picture).
ØWorking Temperature:
0 ℃ ~40 ℃ or -25 ℃~15 ℃。
ØCommunication
interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support
format text, Excel files, data intermediate table, custom development and other
methods.
System Architecture
Solution for Market
Real-time display of the latest price and price type of the supermarket background system and other related information
Network Architecture (Single Store Model)
Network Architecture (Multi-Store Model)
Why Choose Sertag's Electronic Shelf Labels ?
1. Improve the operation efficiency of commodities
2. In-depth evaluation of the value of each commodity and each location
3. Intelligent display of commodity information
4. Enhance the interaction between products and customers
Technical | Product Function | Sertag | HS-COMPANY | HL-COMPANY | B-COMPANY |
Power Dissipation | 5~8 years | 5 years | 5 years | 5 years | |
Communication Frequency | Multichannel Industry SubG | 2.4G | Single Channel Industry SubG | 2.4G | |
Data Security Level | Encryption technique | No | No | No | |
Cost | 15% Reduction | High | High | High | |
Communication Distance | 24M |
12M
|
12M
|
8M
|
|
Speed of Communication | 2000/hour | 700/hour | 700/hour | 700/hour | |
Battery Replacement | Simple, low maintenance cost |
Complex, high maintenance cost
|
Complex, high maintenance cost
|
Complex, high maintenance cost
|
|
Application | Retail, logistics, medical treament, storage |
Retail
|
Retail
|
Retail
|
