2.4G 2.13inch Low Temperature Electronic Shelf Labels Epaper Digital Price Tag for Retail
- Model
- SETRV3-0213-39
Item specifics
- Display Size
- 2.13 inch
- Communication Distance
- Within 30m (Open distance: 50m)
- Communication Band
- 2.4G
- Display Resolution
- 250x122
- Dimension
- 71.28x34.78x12.3
Review
Description

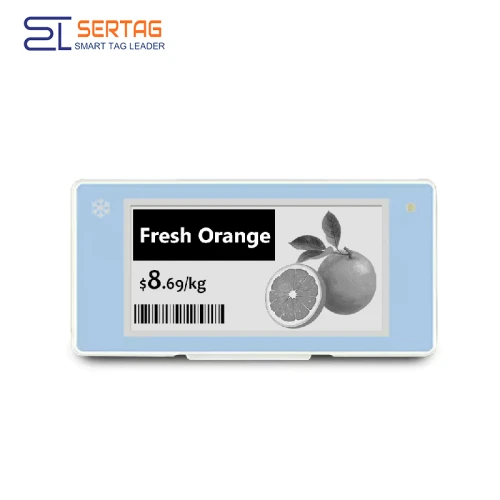

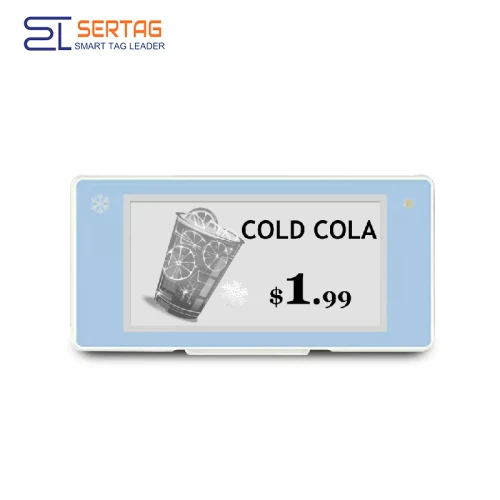

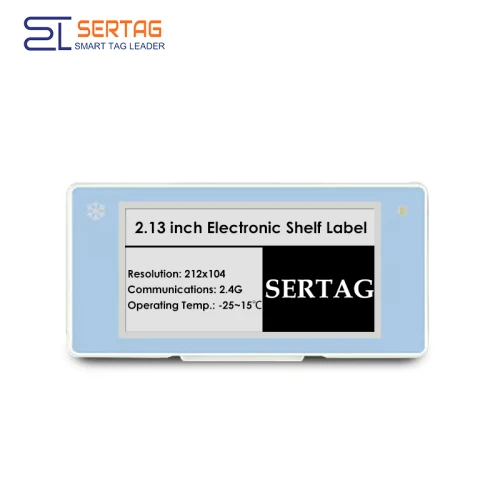

2.13inch Low Temperature Electronic Shelf Labels Epaper Digital Price Tag for Retail
Sertag's 2.13 inch low temperature digital price tag use a black, white e-paper display, designed to elevate retail operations with unparalleled clarity and versatility. It has a high resolution with 250x122, the label delivers sharp and clear visuals for text, barcodes, and images.
The 2.13-inch low temperature epaper digital price tag is more than just a product. Its convenient operation and 30m communication distance (up to 50m in open areas) make it a smart solution for modern retail and other fields.
| Model | SETRV3-0213-39 | Display Technology | Full graphic E-ink Display |
| Dimensions(mm) | 71.28x34.78x12.3 | Active Area(mm) | 48.55x23.70 |
Resolution | 250x122 | Viewing Angle | ＞170° |
Operating Temperature | -25~10℃ | Storage Temperature | -25~10℃ |
Operating Humidity | 45%~70%RH | Protection Grade | IP68 |
| Battery | 2 x CR2450 | Wireless Connectivity | Private Protocol |
ESL Operating Frequency | 2.4~2.48GHz, Max EIRP≤10mW | Display Color | Black, white |
Communication Distance | Within 30m (Open distance: 50m) | NFC | No |
Wireless Firmware Update | Yes | Usable Pages | 8 |
| LED | Red, Green, Blue |
Why Choose eRetail3.2 Electronic Shelf Labels?
eRetail3.2 System ESL
eRetail 3.1 System ESL
Paper Price Label
* SETRV3-0213-39 can't support NFC function, it's different from other eRetail3.2 electronic shelf labels.
| ✔ Reduce Cost | ✔ Reduce Cost | ✘ High Cost |
| ✔ Wireless Update | ✔ Wireless Update | ✘ Can't Update |
✔ Eco-Friendliness | ✔ Eco-Friendliness | ✘ Waste Paper |
✔ Reducing Manual Labor | ✔ Reducing Manual Labor | ✘ Labor Intensive |
⭐ Support multi-page display | Single page display | ✘ |
| ⭐ 4-Colors/ 3-Colors/ Monochrome | 3-Colors/ Monochrome | ✘ |
| ⭐ 30m communication distance (Open distance: 50m) | 12~15 communication radius | ✘ |
2.13inch Low Temperature Electronic Shelf Label Feature
✔ Low Temperature E-ink Display
The -25~10℃ e-ink display makes it perfect for cold environment.
✔ Robust Communication Range
Operating in the 2.4~2.48GHz frequency band, the label offers a communication distance of up to 30 meters indoors and up to 50 meters in open areas.
✔ Multi-Page Display
Supports up to 8 pages, enabling multiple sets of information to be displayed and easily accessed.
✔ Durable and Reliable
With an IP68 protection rating, the label is waterproof, dustproof, and built to withstand challenging environments.
2.4G Electronic Shelf Label Solution—System Architecture
