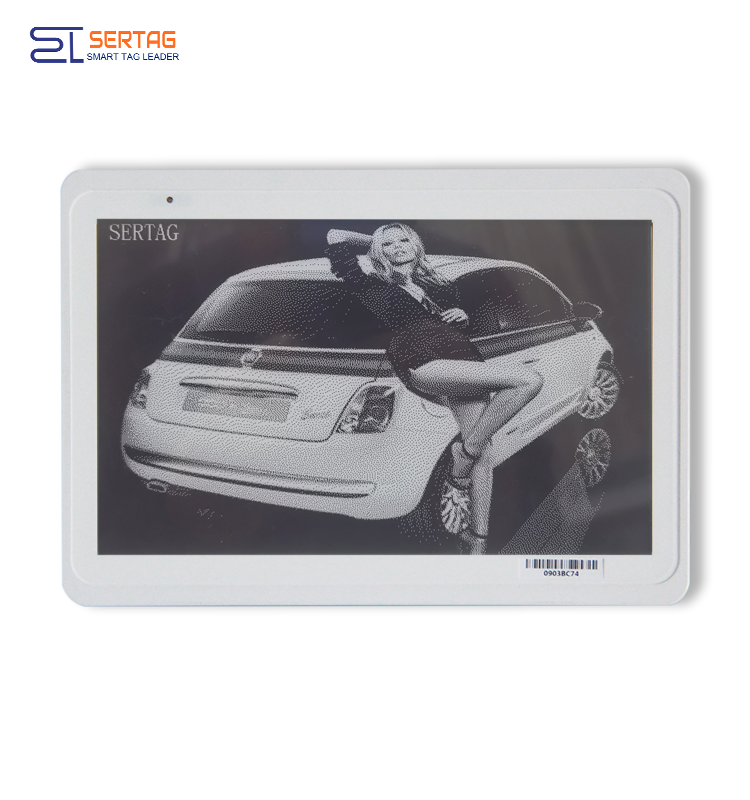

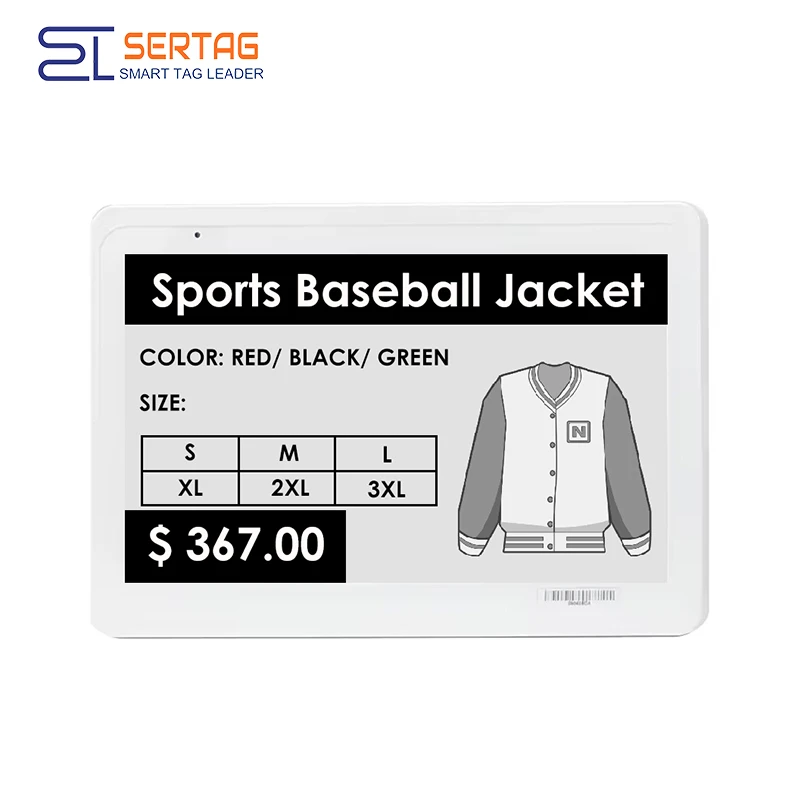

7.5 inch digital price tag E-ink Electronic Shelf Label epaper display tags for retail

Item specifics

Product Description

Feature

1. Low energy

2. Black and white

3. Cloud or local Server based options

4. 433MHz/868 MHz /915 MHzommunication

5. 640*384pixels full graphic, E-Paper displays

6. Perfect for the retails, warehouses, logistics management and meeting system

Parameters

Model	SETR0750N
Screen Size	7.5inch
Dimension	216mm(V) ×131mm(H)×9mm(D)
Display Resolution	640*384
Display Type	Bi-stable EPD(E-ink Display)
Display Color	Black and white
Appearance	Standard unit available with white frame
Unit Identifier Barcode	Recognized by Scanner or Labeling on back
Opereating Temperature	0~50℃-
Storage Temperature	-10~60℃
Battery Life	Not less than 5 years，Replaceable
Replaceable Batteries	CR2450*6
Weight	239g
Communications	433MHz/868 MHz /915 MHz
Operating Voltage	2.4V~3.6V

Wireless communication technology

ØDisplay update rate: 30 minutes/30 thousands tags.

ØSuccess Rate: 100%.

ØCommunication Band: RF 433MHz.

ØCoverage Distance: 30-50 meters

ØDisplay Templates: Customizable, support for dot matrix (picture).

ØWorking Temperature: 0 ℃ ~40 ℃ or -25 ℃~15 ℃。

ØCommunication interaction: two-way communication, real-time interaction.

ØLife Time: 5 Years, battery can be changed.

ØSystem: Support format text, Excel files, data intermediate table, custom development and other methods.

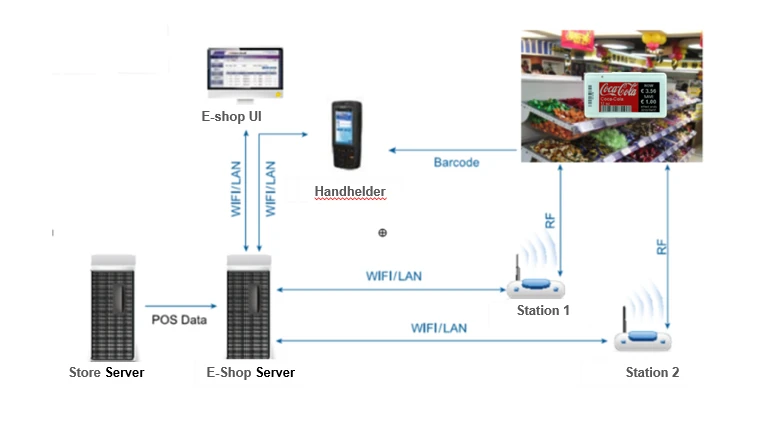

System architecture

Solution for Market

Real-time display of the latest price and price type of the supermarket background system and other related information

Network architecture (single store model)

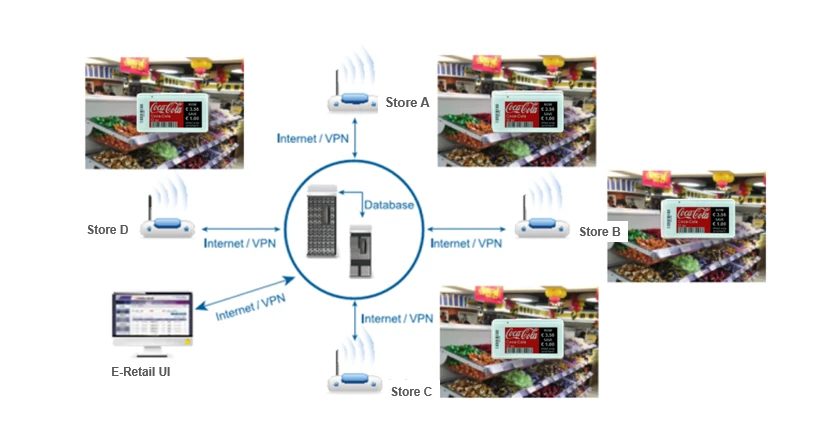

Network architecture (multi-store model)

Why choose sertag’s electornic shelf labels ?

1.Improve the operation efficiency of commodities

2.In-depth evaluation of the value of each commodity and each location

3.Intelligent display of commodity information

4.Enhance the interaction between products and customers

Advantage

Technical	Prdouct Function	Sertag	HS-COMPANY	HL-COMPANY	B-COMPANY
	Power Dissipation	5--8 years	5years	5years	5years
	Communication Frequency	multichannel Industry SubG	2.4G	single channel Industry Subg	2.4G
	Data security level	encryption technique	no	no	no
	Cost	15% reduction	High	High	High
	Communication Distance	24M	12M	12M	8M
	Speed of communication	2000/hour	700/hour	700/hour	700/hour
	Battery Replacement	Simple, low maintenance cost	Complex, high maintenance cost	Complex,high maintenance cost	Complex,high maintenance cost
	Application	Retail ,logistics, medical treatment, storage	retail	retail	retail
